Engineered for challenging environments where uptime, durability, and marking clarity matter most.
Using proven drop‑on‑demand valve technology, the V‑Series marks on both porous and non‑porous substrates, including metal, wood, paper and pulp, cardboard, concrete, rubber, plastic, bags, cartons, and building products—even in dusty, hot, or high‑vibration environments.
"Matthews’ V-Series DOD inkjet printer has improved our efficiency by 50%. In addition, the system is extremely robust and reliable, requires only minimal maintenance, and is much easier to operate. We finally feel confident that we can consistently deliver our customers’ orders on time."

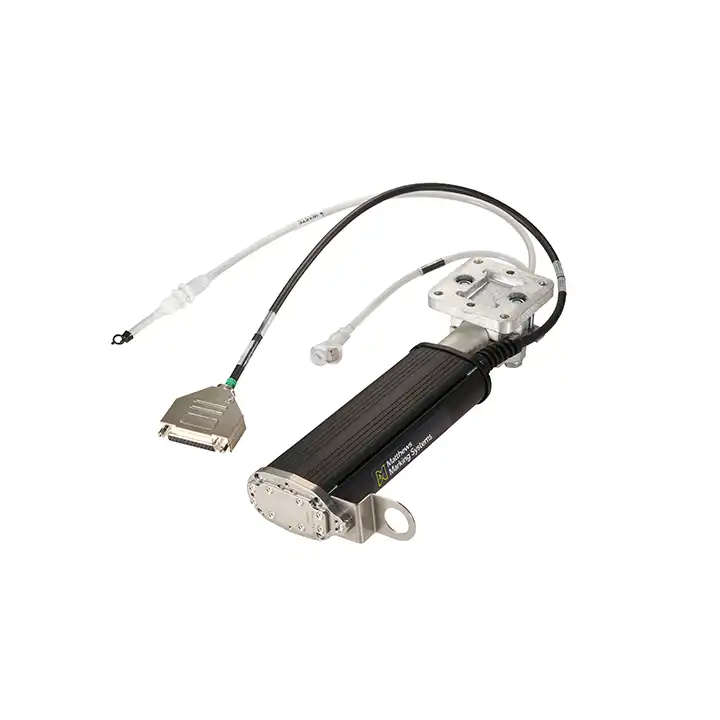

The 7 valve printhead is ideal for small character marking and coding, available with mini, midi, and maxi nozzle options.

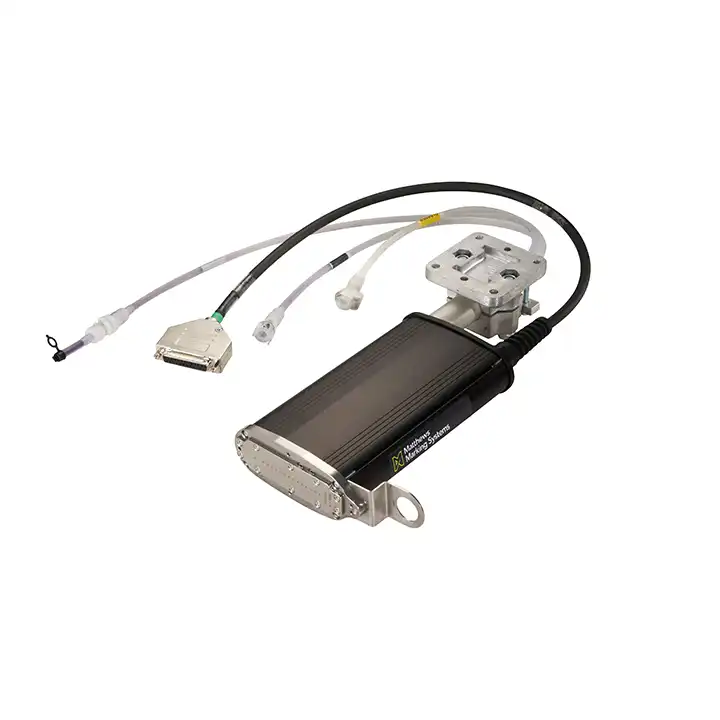

The 16 valve printhead is ideal for small and medium character marking and coding, available with mini, midi, and maxi nozzle options.
The 32 valve printhead is ideal for large character, high-speed production line marking and coding, available with mini, midi, and maxi nozzle options.
Our enclosed module featuring an internal power supply and printhead driver board, enables communication between the DOD printhead technology and the MPERIA controller through an Ethernet connection. V-Links can be stacked and networked through MPERIA®, providing a flexible and scalable system for small or very large applications.
Built for applications that strain single-use TIJ cartridges, the ST1000 combines bulk ink capacity, high-resolution output, and MPERIA control.
Matthews ink supply systems are designed to reliably deliver ink formulations and cleaners for optimal print performance with 8000+ printheads…
Matthews inks are formulated and manufactured in-house for compatibility with Matthews marking equipment and the materials customers mark in production.
Required consumables include ink, cleaning solution, and lint-free wipes. Ink type varies by substrate and operating environment.
The V-Series is built for reliable operation in demanding environments. Routine maintenance includes flushing cycles, ink level inspections, and print quality checks. The built-in flushing valve system simplifies cleaning.
Message creation, storage, and selection are managed through the MPERIA® platform. Messages can be created manually on the controller, downloaded remotely, or imported via USB drive.
The types of marks you can make with the V-Series include variable data such as unique serial numbers, expiration dates, lot codes, and alphanumeric text.
The V-Series supports large-character marking from 1/8" to 5" (3 mm to 127 mm). Printheads can be stitched together to achieve larger print heights. Exact print size depends on printhead configuration, ink type, and application requirements.
The V-Series is designed for challenging porous and non-porous substrates, including corrugated cardboard, bags, lumber, building materials, rubber, and other industrial materials.
Our experts are available to assure that your next printing solution maximizes efficiency, enhances quality, and limits downtime. Contact us to get a quote, request samples, schedule a demonstration, or receive additional product information.
