ST1000™ {{Thermal Inkjet Printer}}

ST1000™ Thermal Inkjet Printer

The MPERIA® ST1000 uses a 775 mL bulk ink system and scalable printhead configurations to reduce changeovers while producing crisp text, logos, and scannable barcodes.

Talk to a Solutions Engineer

What is the ST1000?

MPERIA Thermal Inkjet ST1000 top and side dual-printhead configuration

Built for applications that strain single-use TIJ cartridges, the ST1000 combines bulk ink capacity, high-resolution output, and MPERIA control.

When print requirements outgrow standard single-use TIJ cartridges, the ST1000 provides a bulk ink platform for larger marks, higher duty cycles, and consistent code quality.

  • Bulk Ink System: 775 mL bulk ink capacity reduces changeovers and helps keep production running longer with fewer interruptions.
  • Print Quality: High-resolution printing up to 1200 dpi delivers crisp text, logos, and scannable 1D and 2D barcodes.
  • Scalability: Expand print height from 22 mm to 88 mm with stitched printheads for larger case codes, graphics, and compliance marks.
  • Integration: Native MPERIA® integration centralizes printer control and message management across production lines.
Talk to a Solutions Engineer

Why Choose ST1000™ Thermal Inkjet Printer?

Scalability

Flexible Configurations: Support single-side, dual-side, and stitched printhead setups for different case coding requirements.

Production-Line Fit: Install with side, downward, or upward printing orientations to match your line layout.

Centralized Control: Manage the ST1000 through MPERIA alongside other connected marking and coding technologies from one interface.

Productivity

Fewer Changeovers: Run longer with a 775 mL bulk ink supply that reduces interruptions tied to small cartridge replacements.

Less Operator Intervention: Reduce stop-start behavior during high-volume runs with bulk ink delivery and centralized MPERIA operation.

Routine Maintenance: Keep daily upkeep simple with basic printhead wiping and bulk cartridge replacement handled by on-site personnel.

Print Performance

High Resolution: Print crisp text, logos, graphics, and scannable 1D and 2D barcodes at resolutions up to 1200 dpi.

Larger Marks: Expand print height from 0.86 in to approximately 3.45 in by stitching up to four printheads per ink delivery system.

Barcode Confidence: Produce readable case codes, including GS1-128 barcodes, for evolving retail, logistics, and compliance requirements.
Get a Quote

ST1000™ Thermal Inkjet Printer Products

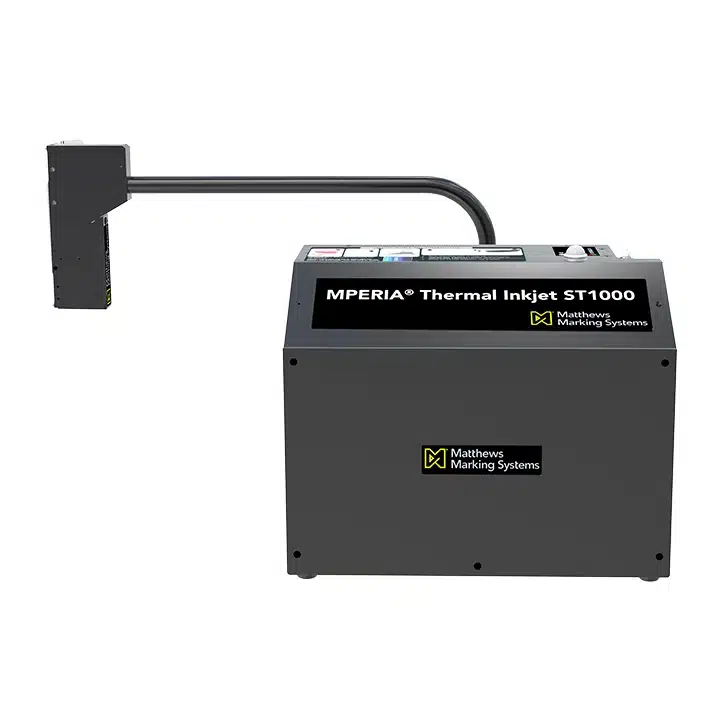

MPERIA Thermal Inkjet ST1000 single-printhead configuration
ST1000™ Thermal Inkjet Printer

SINGLE SIDE — 22 MM

1 printhead, single-side coding

  • Max Print Speed: 600 ft/min (182 m/min)
  • Max Print Speed Conditions: Up to 1200 dpi
  • Print Height: 0.86 in (22 mm)
  • Print Direction: Horizontal
  • Throw Distance: Up to 0.27 in (7 mm)
  • Printhead Technology: Thermal Inkjet
  • Bulk Ink Compatible: Standard / Included

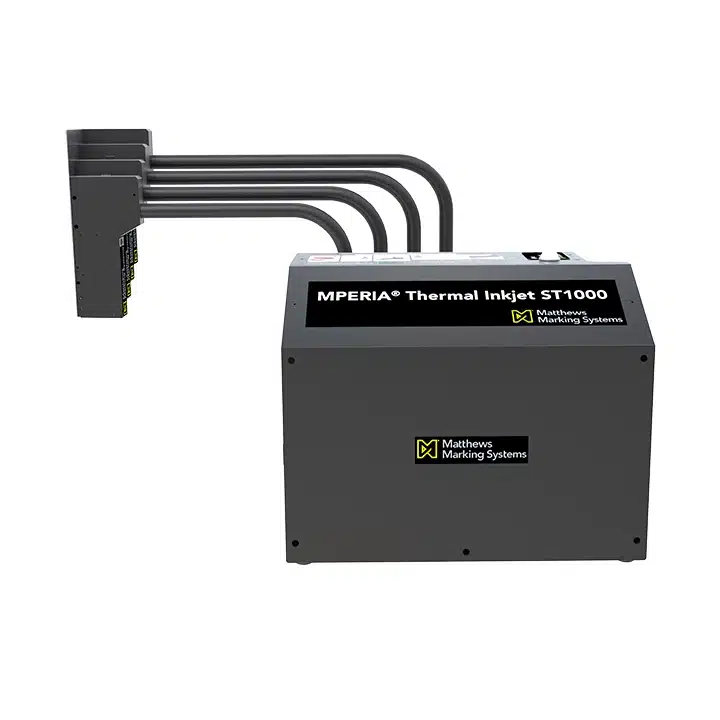

MPERIA Thermal Inkjet ST1000 four-printhead configuration
ST1000™ Thermal Inkjet Printer

SINGLE SIDE — 88 MM

4 printheads stitched, single-side coding

  • Max Print Speed: 600 ft/min (182 m/min)
  • Max Print Speed Conditions: Up to 1200 dpi
  • Print Height: 3.45 in (88 mm)
  • Print Direction: Horizontal
  • Throw Distance: Up to 0.27 in (7 mm)
  • Printhead Technology: Thermal Inkjet
  • Bulk Ink Compatible: Standard / Included

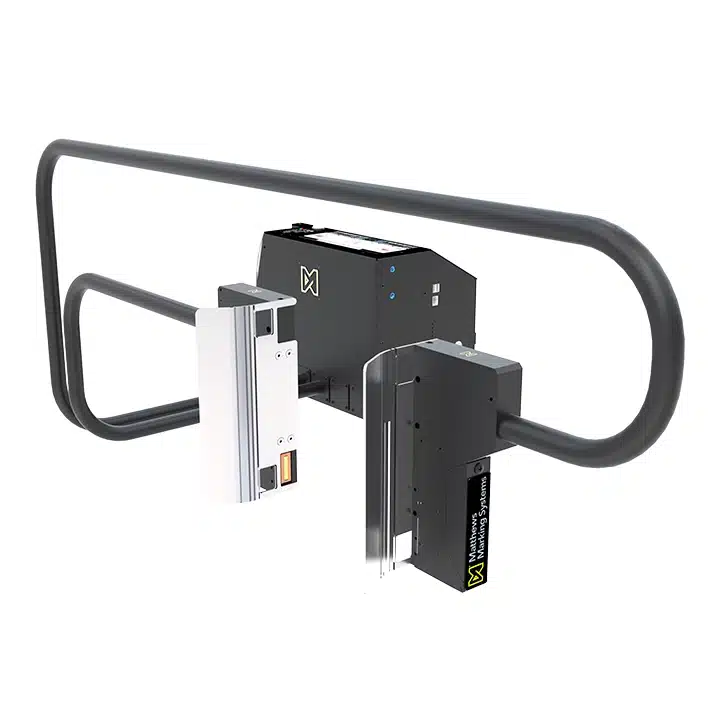

MPERIA Thermal Inkjet ST1000 with two opposing printheads
ST1000™ Thermal Inkjet Printer

BOTH SIDES — 2 X 22 MM

1 printhead, dual-side coding

  • Max Print Speed: 600 ft/min (182 m/min)
  • Max Print Speed Conditions: Up to 1200 dpi
  • Print Height: 2 x 0.86 in (2 x 22 mm)
  • Print Direction: Horizontal
  • Throw Distance: Up to 0.27 in (7 mm)
  • Printhead Technology: Thermal Inkjet
  • Bulk Ink Compatible: Standard / Included

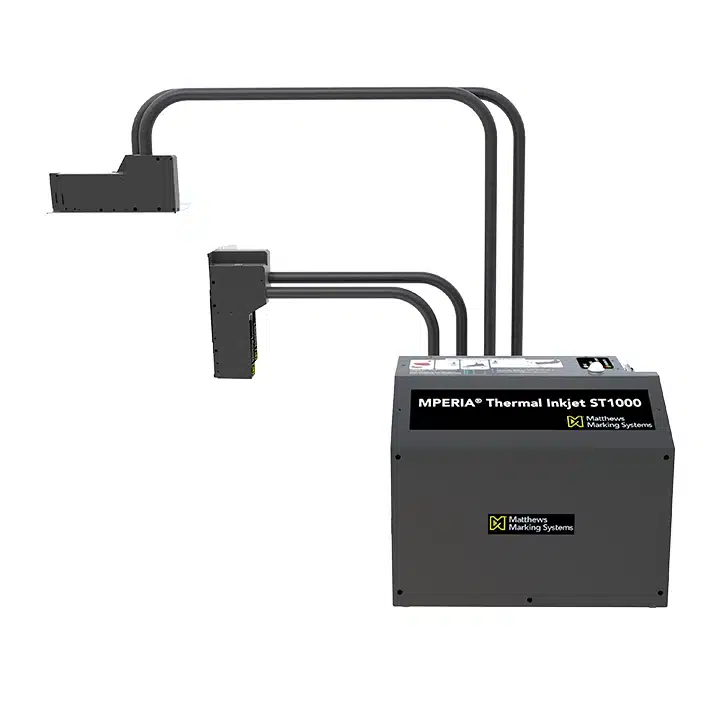

MPERIA Thermal Inkjet ST1000 with two dual-printhead configurations
ST1000™ Thermal Inkjet Printer

BOTH SIDES — 2 X 44 MM

2 printheads, dual-side coding

  • Max Print Speed: 600 ft/min (182 m/min)
  • Max Print Speed Conditions: Up to 1200 dpi
  • Print Height: 2 x 1.792 in (44 mm)
  • Print Direction: Horizontal, Down
  • Throw Distance: Up to 0.27 in (7 mm)
  • Printhead Technology: Thermal Inkjet
  • Bulk Ink Compatible: Standard / Included

Product Resources

Model comparison

MPERIA Thermal Inkjet ST1000 single-printhead configuration
MPERIA Thermal Inkjet ST1000 four-printhead configuration
MPERIA Thermal Inkjet ST1000 with two opposing printheads
MPERIA Thermal Inkjet ST1000 with two dual-printhead configurations
ST1000™ Thermal Inkjet Printer
SINGLE SIDE — 22 MM
SINGLE SIDE — 88 MM
BOTH SIDES — 2 X 22 MM
BOTH SIDES — 2 X 44 MM
Max Speed
600 ft/min (182 m/min)
600 ft/min (182 m/min)
600 ft/min (182 m/min)
600 ft/min (182 m/min)
Speed Conditions
Up to 1200 dpi
Up to 1200 dpi
Up to 1200 dpi
Up to 1200 dpi
Throw Distance
Up to 0.27 in (7 mm)
Up to 0.27 in (7 mm)
Up to 0.27 in (7 mm)
Up to 0.27 in (7 mm)
Print Direction
Horizontal
Horizontal
Horizontal
Horizontal, Down

Frequently Asked Questions

When should a manufacturer consider the ST1000?

Manufacturers should consider the ST1000 when print volumes, mark sizes, barcode requirements, or duty cycles have outgrown standard single-use TIJ systems. It is also a strong fit when reducing cartridge interruptions, simplifying routine maintenance, or standardizing marking through MPERIA are important production priorities.

What print orientations does the ST1000 support?

The ST1000 supports side, downward, and upward-facing print orientations. This gives manufacturers more flexibility when fitting the system into existing production line layouts.

How does MPERIA integration help operators?

The ST1000 operates through Matthews’ MPERIA platform, allowing operators to manage the printer alongside other connected marking and coding devices from one interface. Messages can be managed centrally and pushed across lines or sites, helping reduce training burden and support more consistent operation.

What maintenance does the ST1000 require?

Routine ST1000 maintenance is simple and typically limited to wiping the printhead and replacing the bulk ink cartridge when needed. The system does not require routine fluid system flushing, service contracts for basic upkeep, or complex overhaul procedures for daily operation.

Can the ST1000 keep up with high-speed production lines?

Yes. The ST1000 is designed for medium-to-high throughput case coding and other high resolution marking needs on porous substrates, and supports line speeds up to 600 ft/min, or 182 m/min. That makes it suitable for fast-moving production lines that need consistent print quality without frequent consumable interruptions.

How large can the ST1000 print?

Each ST1000 printhead covers 0.86 in, or 22 mm, of print height. Up to four printheads can be stitched together per ink delivery system, reaching a total print height of approximately 3.45 in, or 88 mm.

Can the ST1000 print GS1-compliant barcodes?

Yes. The ST1000 is designed to print readable barcodes, including GS1-128 and 2D formats used for retail, logistics, and compliance applications. The system supports high-resolution output at 600 dpi or higher, with a maximum resolution of up to 1200 dpi.

What types of marks can the ST1000 print?

The ST1000 can print text, lot codes, date codes, alphanumeric codes, 1D and 2D barcodes, logos, and compliance labels. It is designed to support high-resolution case coding, including GS1-128 barcode requirements.

Why does bulk ink matter for production lines?

Bulk ink helps reduce how often operators need to stop the line or interrupt production to replace consumables. For high-volume case coding, this can support longer continuous runs, fewer manual interventions, and more predictable line operation.

How is the ST1000 different from standard TIJ printers?

Standard TIJ systems often rely on small single-use cartridges that require frequent replacement during demanding production runs. The ST1000 uses a 775 mL bulk ink system, helping reduce consumable changeovers while supporting larger marks, higher duty cycles, and consistent print quality at production speeds.

Where is the ST1000 best used?

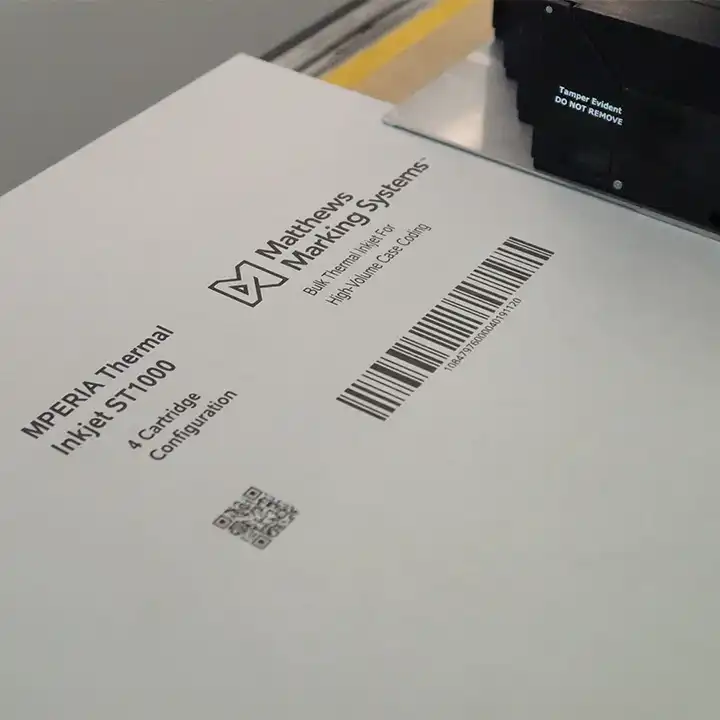

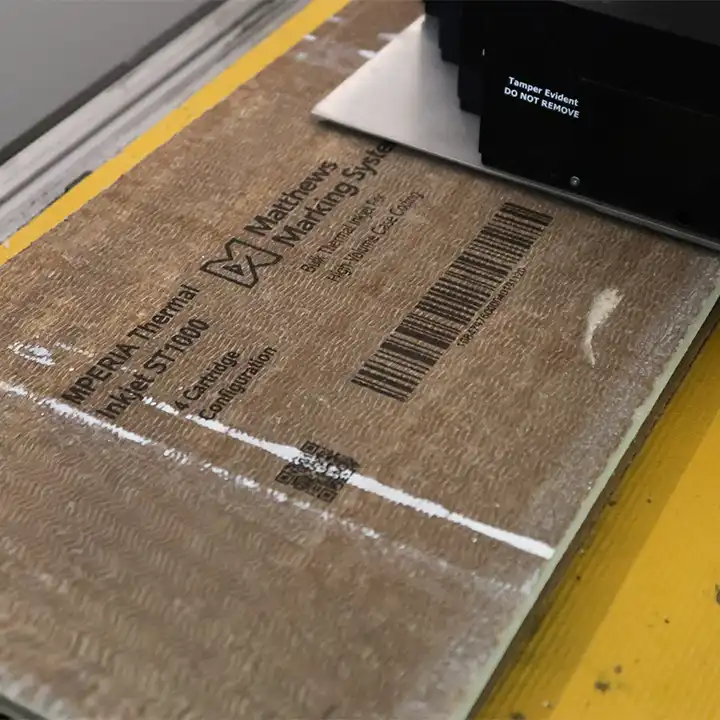

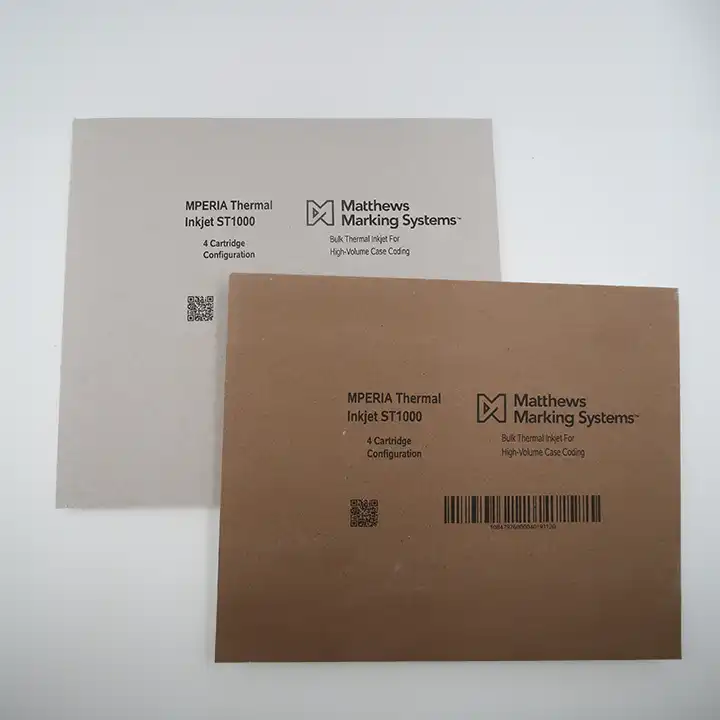

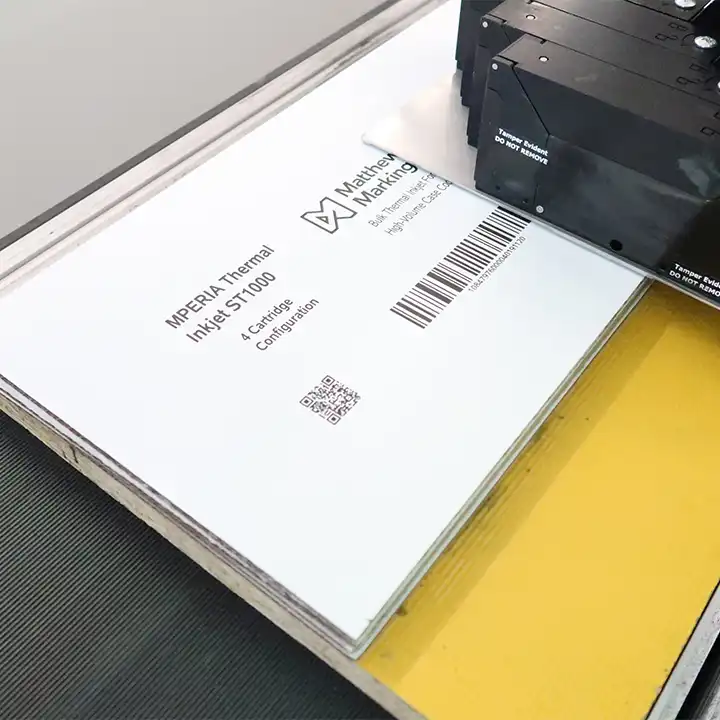

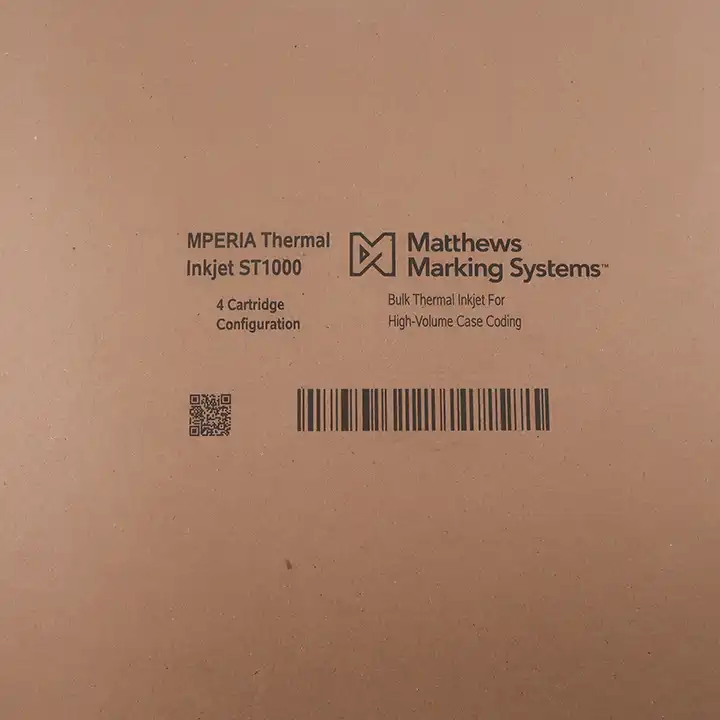

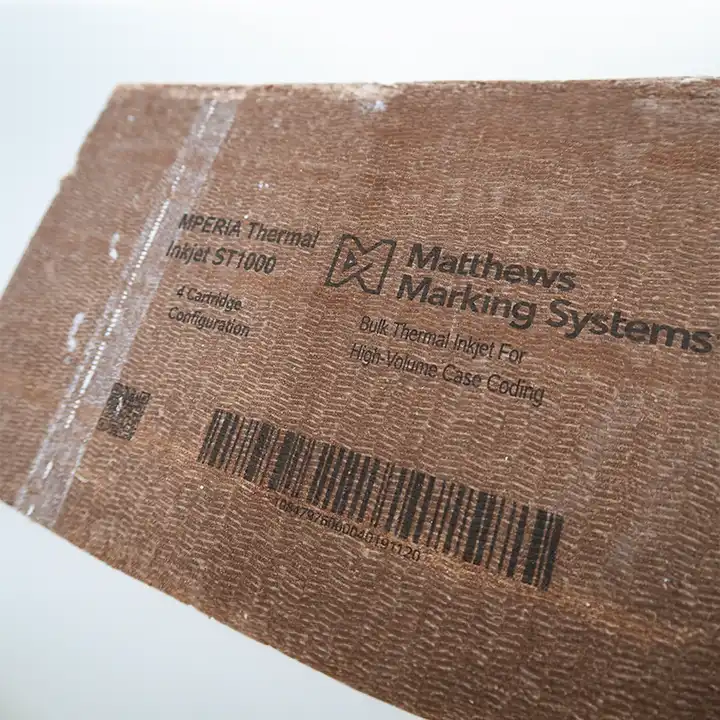

The ST1000 is best suited for high-volume case coding on porous substrates such as corrugated cardboard, paperboard, chipboard, fiberboard, uncoated wood, and paper-wrapped construction materials. Common applications include food and beverage case coding, consumer packaged goods, logistics coding, building materials marking, and compliance coding.

What is the MPERIA® ST1000?

The MPERIA® ST1000 is a bulk thermal inkjet system designed for medium-to-high throughput production environments. It combines TIJ 4.0 print technology, a 775 mL bulk ink supply, and native MPERIA integration to support larger, high-resolution marks with fewer interruptions.
